Horizontal Scaling Deployment Strategies

Weaviate offers two complementary superpowers for scaling your deployment: sharding and replication. Sharding divides your data so it can be spread out across multiple nodes, allowing you to handle datasets far larger than a single machine could process. Meanwhile, replication creates redundant copies of your data, ensuring high availability even when individual nodes fail or need maintenance. While each scaling method shines on its own, the true magic happens when they join forces.

Let's explore how you can harness these capabilities to build a deployment that's both massive in scale and rock-solid in reliability!

Scaling Methods

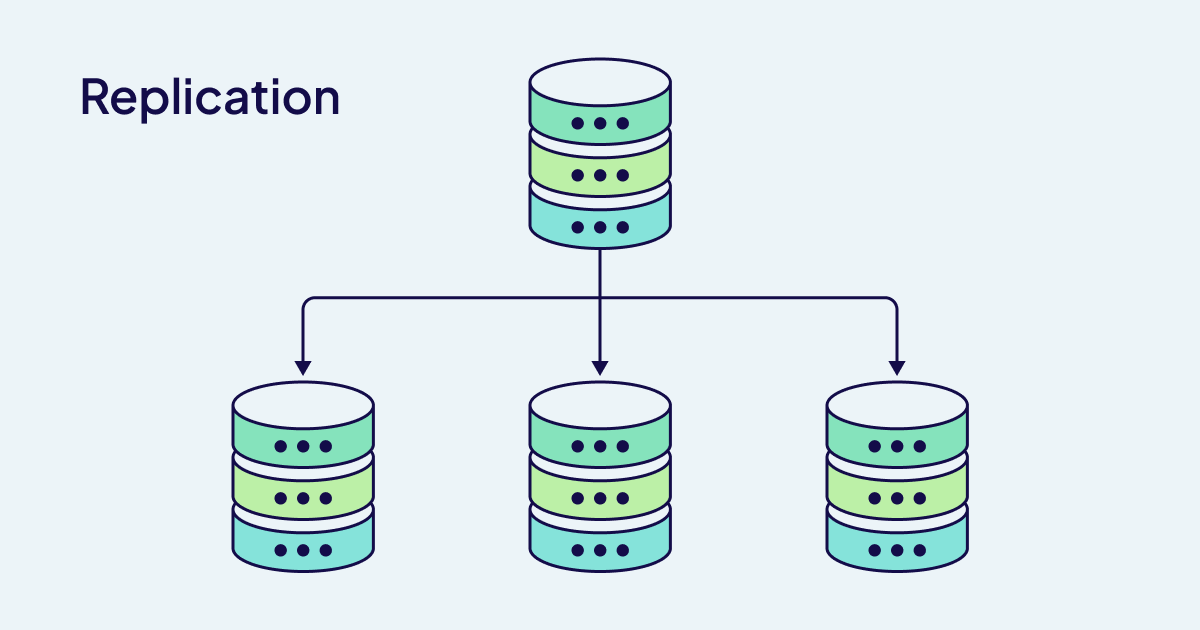

Replication

Replication creates redundant copies of your data, it is useful when your data needs to be highly available.

replication

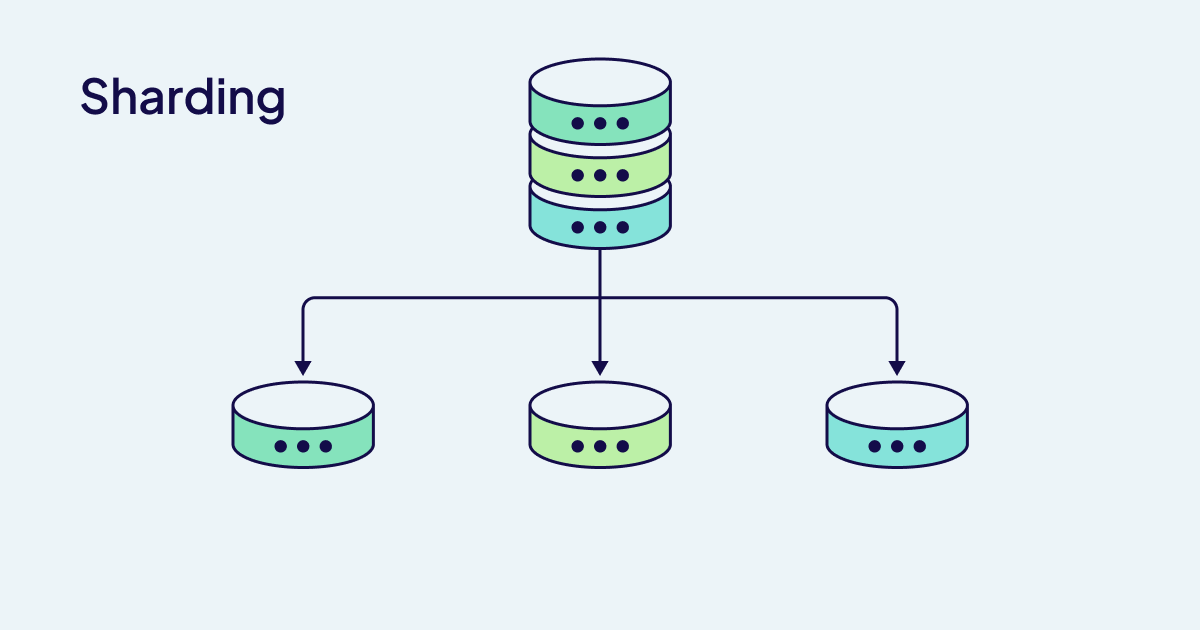

Sharding

Sharding divides data across nodes, it is useful when your dataset is too large for just a single node.

sharding

Choosing your strategy

Requirement/Goal	Sharding	Replication	Both Combined	Primary Consideration
Handle dataset too large for single node	Yes	No	Yes	How much data are you storing? - Vector dimensions and count determine memory requirements - Sharding divides this across nodes
Improve query throughput	Maybe*	Yes	Yes	Is your workload read-heavy? - Replication allows distributing read queries across nodes - Sharding may help with certain query patterns
Accelerate data imports	Yes	No	Yes	Is import speed a priority? - Sharding enables parallel processing of imports - Replication adds overhead during imports
Ensure high availability	No	Yes	Yes	Can you tolerate downtime? - Replication provides redundancy if nodes fail - Without replication, shard loss = data loss
Enable zero-downtime upgrades	No	Yes	Yes	How critical is continuous operation? - Replication allows rolling updates - Production systems typically require this capability
Optimize resource utilization	Yes	Maybe*	Maybe*	Are you resource-constrained? - Sharding distributes load efficiently - Replication adds resource overhead
Geographic distribution	No	Yes	Yes	Do you need multi-region support? - Replicas can be deployed across regions - Reduces latency for geographically distributed users

*This may serve as a partial solution and will depend on your configuration.

Sharding: Divide and Conquer

You've made the decision to shard your data, now let's get it configured:

Python

from weaviate.classes.config import Configureclient.collections.create(    "Article",    sharding_config=Configure.sharding(        virtual_per_physical=128,        desired_count=1,        desired_virtual_count=128,    ),)

JavaScript/TypeScript

import { configure } from 'weaviate-client';

Parameters

These parameters are used to configure your collection shards:

Parameter	Type	Description
`desiredCount`	integer	Immutable, Optional. Controls the target number of physical shards for the collection index. Defaults to the number of nodes in the cluster, but can be explicitly set lower. If set higher than the node count, some nodes will host multiple shards.
`virtualPerPhysical`	integer	Immutable, Optional. Defines how many virtual shards correspond to one physical shard, defaulting to `128`.
`desiredVirtualCount`	integer	Read-only. Shows the target total number of virtual shards, calculated as `desiredCount * virtualPerPhysical`.

Replication: An army of clones

Configure your data's replication to ensure it's always available:

Configure replication settings, such as async replication and deletion resolution strategy.

Python

from weaviate.classes.config import Configure, ReplicationDeletionStrategyclient.collections.create(    "Article",    replication_config=Configure.replication(        factor=3,        deletion_strategy=ReplicationDeletionStrategy.TIME_BASED_RESOLUTION,        async_config=Configure.Replication.async_config(            hashtree_height=16,            frequency=30,        ),    ),)

JavaScript/TypeScript

import { configure } from 'weaviate-client';

cURL

curl \
-X POST \
-H "Content-Type: application/json" \
-d '{
    "class": "Article",
    "properties": [
        {
            "dataType": [
                "string"
            ],
            "description": "Title of the article",
            "name": "title"
        }
    ],
    "replicationConfig": {
      "factor": 3,
      "deletionStrategy": "TimeBasedResolution"
    }
}' \
http://localhost:8080/v1/schema

In a highly available environment, combining sharding and replication leverages the power and capabilities of both methods to be a dynamic duo that keeps your deployment highly available. If given the opportunity, those two techniques will be your deployment's dynamic duo. Specifically using the ASYNC_REPLICATION environment variables introduced in the 1.29 release will allow you to unleash the full power of horizontal scaling!
